BLUE-FLEX® Grid COUPLINGS︱蛇簧联轴器

BLUE-FLEX® Grid COUPLINGS︱蛇簧联轴器

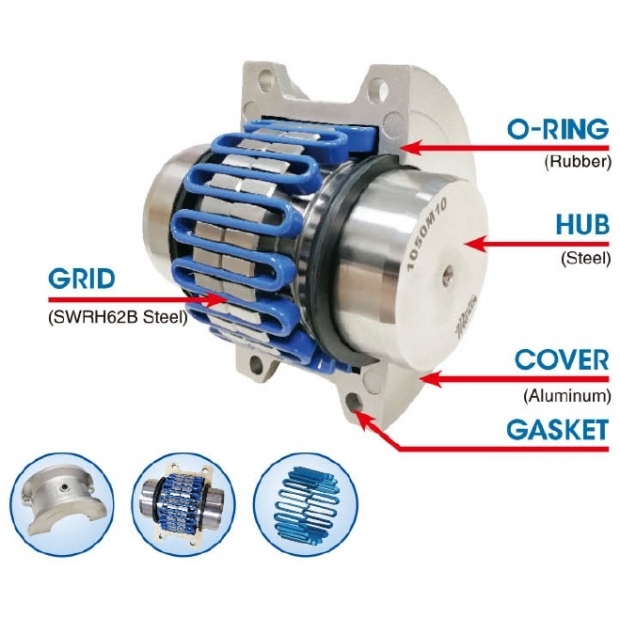

BLUE-FLEX® GRID 蛇簧联轴器,在恶劣环境下很有优势,并适用于高负载与高扭矩及吸收振动的特色.
BLUE FLEX-3
/
BLUE FLEX-1 technology
/
BLUE FLEX-T10
/
BLUE FLEX-T20
/
BLUE FLEX-T31
/
BLUE FLEX-T35
/
  • BLUE FLEX-3
  • BLUE FLEX-1 technology
  • BLUE FLEX-T10
  • BLUE FLEX-T20
  • BLUE FLEX-T31
  • BLUE FLEX-T35
详细介绍

平行错位

蛇簧在润滑之凹槽平行错位，以及允许整体蛇簧运 行减震与转动。

角度错位

角度错位的情况下，蛇簧设计允许震动，以及润滑的蛇簧之滑动，还有铁件透过弹性弹簧不会损失任何动能。

轴向浮动

因为蛇簧在润滑之凹槽，允许无限制地轴向浮动和驱动。

扭转之灵活性

蛇簧联轴器有很好的灵活性，能够转换取代各种联轴器。

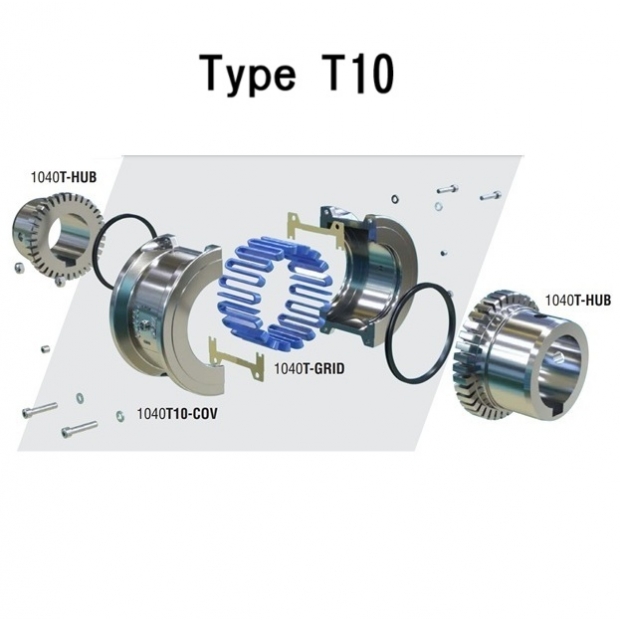

Type T10 Horizontal Cover Design

1020T10, 1030T10, 1040T10, 1050T10, 1060T10, 1070T10, 1080T10, 1090T10, 1100T10, 1110T10, 1120T10, 1130T10, 1140T10, 1150T10, 1160T10, 1170T10, 1180T10, 1190T10, 1200T10.

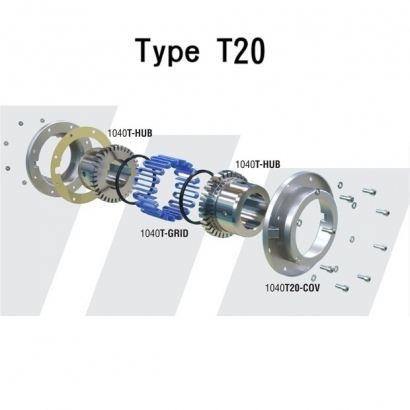

Type T20 Vertical Cover Design

1020T20, 1030T20, 1040T20, 1050T20, 1060T20, 1070T20, 1080T20, 1090T20, 1100T20, 1110T20, 1120T20, 1130T20, 1140T20, 1150T20, 1160T20, 1170T20, 1180T20, 1190T20, 1200T20.

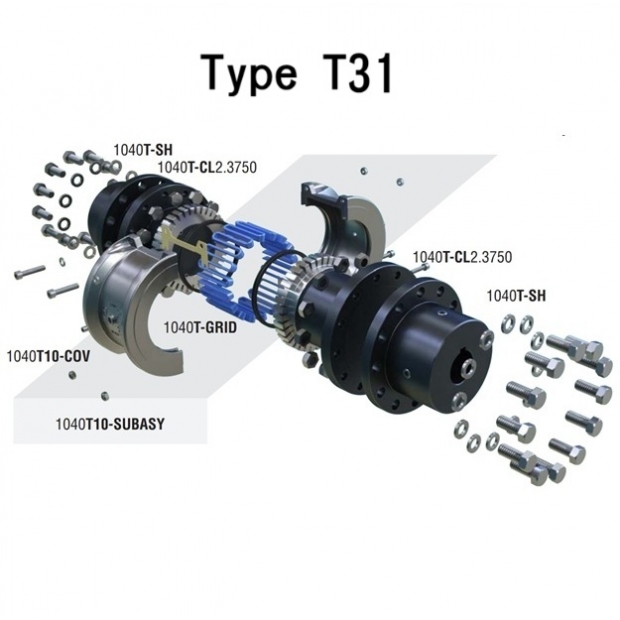

Type T31 Spacer Design

1020T31, 1030T31, 1040T31, 1050T31, 1060T31, 1070T31, 1080T31, 1090T31, 1100T31, 1110T31, 1120T31, 1130T31, 1140T31, 1150T31, 1160T31, 1170T31, 1180T31, 1190T31, 1200T31.

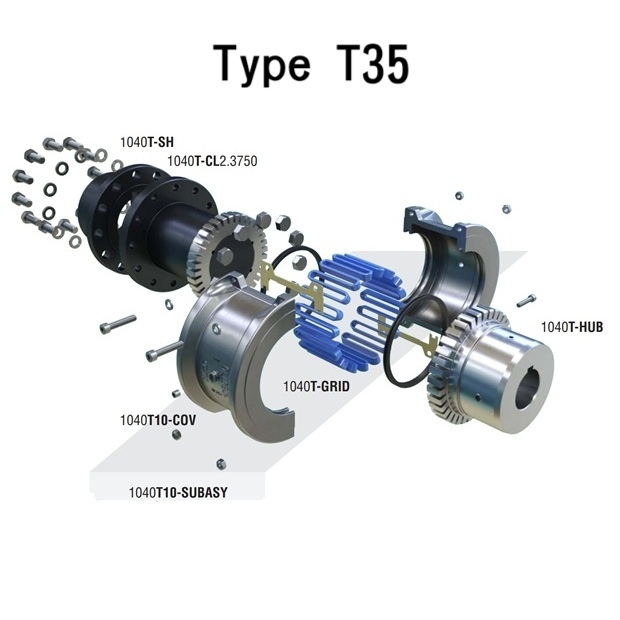

Type T35 Half Spacer Design

1020T35, 1030T35, 1040T35, 1050T35, 1060T35, 1070T35, 1080T35, 1090T35, 1100T35, 1110T35, 1120T35, 1130T35, 1140T35, 1150T35, 1160T35, 1170T35, 1180T35, 1190T35, 1200T35.
