齿形 PROFILE︱INCH type

齿形 PROFILE︱INCH type

XL,L,H,XH
INCH TYPE
/
PU STANDARD
/
PU PAZ
/
PU PAR
/
  • INCH TYPE

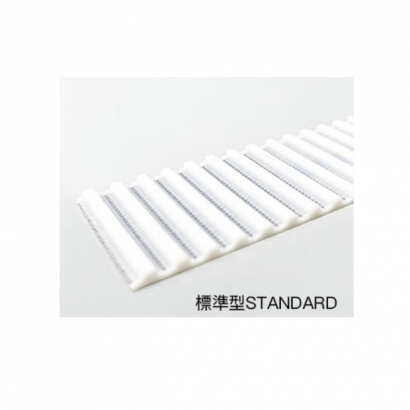

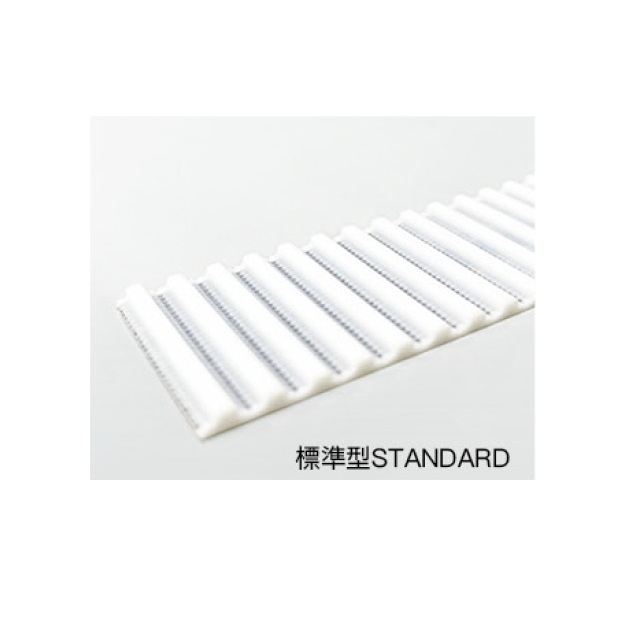

  • PU STANDARD

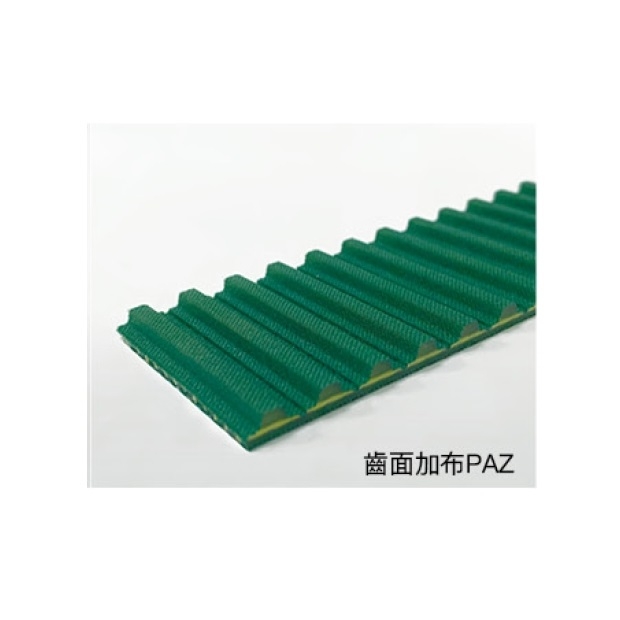

  • PU PAZ

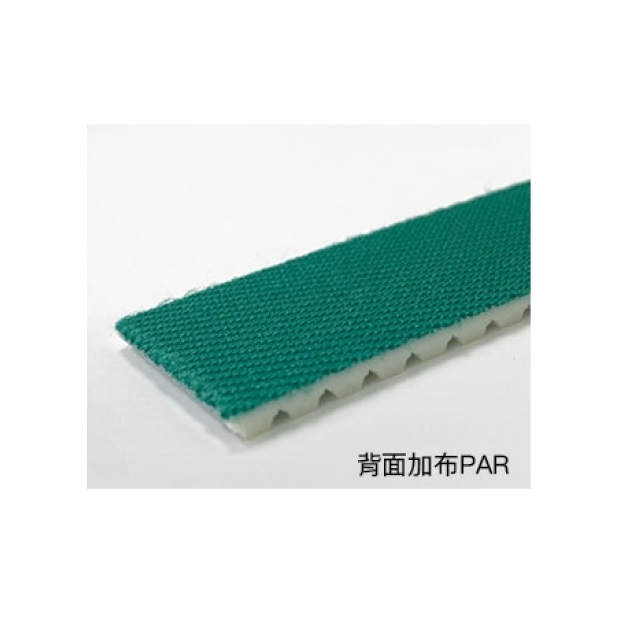

  • PU PAR
详细介绍
BELT CHARACTERISTICS

- Truly endless polyurethane timing belt with steel tension cords

- Tooth profile according to UNI/SO 5296

- Mainly used in applications where inch pitch is an advantage

- XL profile transmissible power up to 5 kW

- L profile transmissible power up to 20 kW

- H profile transmissible power up to 30 kW

- XH profile transmissible power up to 100 kW

- L,H profile dual toothing available from 1500 mm

透过手机观看，请左右滑动观看
STANDARD

TOOTH
PROFILE		 TOOTH
ANGLE		 WIDTH
TOLERANCE
[mm]		 THICKNESS
TOLERANCE
[mm]
XL 50° ±0.5 ±0.2
L 40° ±0.5 ±0.2
H 40° ±0.5 ±0.2
XH 40° ±1.0 ±0.2

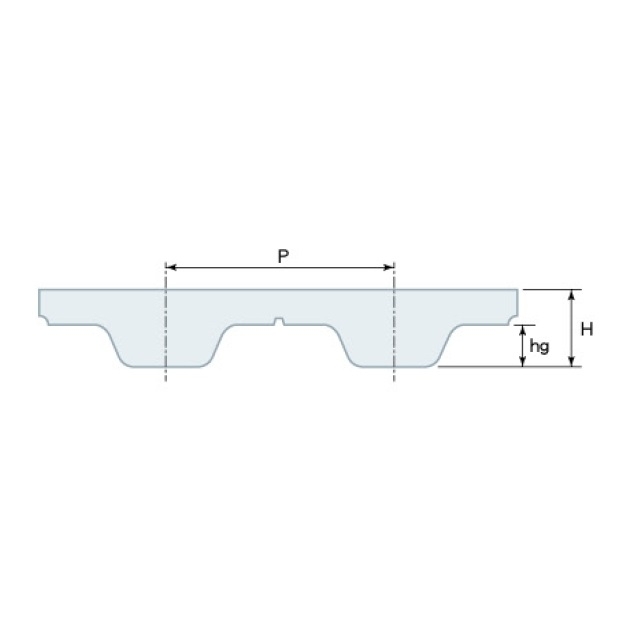

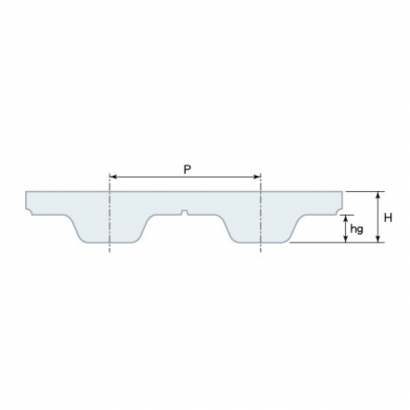

SPECIFICATION

型号
TYPE		 节距
P		 齿高
hg		 总厚
H
XL 5.08
(1/5")		 1.27 2.3
L 9.525
(3/8")		 1.90 3.6
H 12.7
(1/2")		 2.30 4.3
XH 22.225
(7/8")		 6.35 11.2
芯线：STEEL标准,高性能HP,高柔性HF（另可提供ARAMID芳纶芯,不锈钢芯来满足客户需求）＊视实际制造标准为主＊
