BELT CHARACTERISTICS
- Truly endless polyurethane timing belt with steel tension cords
- Tooth profile according to ISO 17396（AT15 profile not included）
- Tooth profile and dimension are optimised to guarantee uniform load distribution and minimum deformation under load
- High resistance and low stretch steel cords to guarantee high stability and low elongation
- Reduced polygonal effect with reduced drive vibration and noise
- AT3 profile transmissible power up to 5 kW
- AT5 profile transmissible power up to 15 kW
- AT10 profile transmissible power up to 70 kW
- AT15 profile transmissible power up to 200 kW
- AT20 profile transmissible power up to 200 kW
- AT3 profile max. length 2400 mm
- AT5,AT10,AT20 Dual toothing available from 1500 mm
- AT10 profile HPL cord execution available
透过手机观看，请左右滑动观看

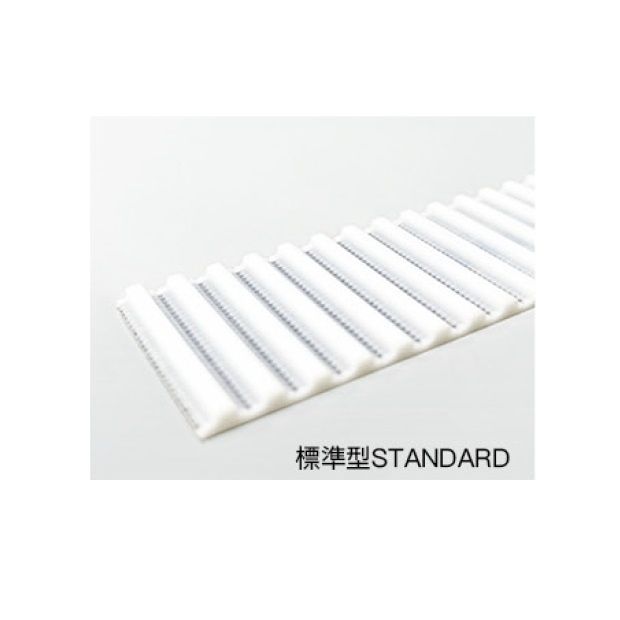

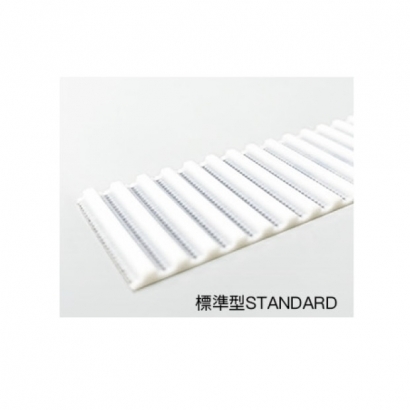

STANDARD
TOOTH
PROFILE |
TOOTH
ANGLE |
WIDTH
TOLERANCE
[mm] |
THICKNESS
TOLERANCE
[mm] |
| AT3 |
50° |
±0.5 |
±0.2 |
| AT5 |
50° |
±0.5 |
±0.2 |
| AT10 |
50° |
±0.5 |
±0.2 |
| AT15 |
50° |
±1.0 |
±0.2 |
| AT20 |
50° |
±1.0 |
±0.2 |

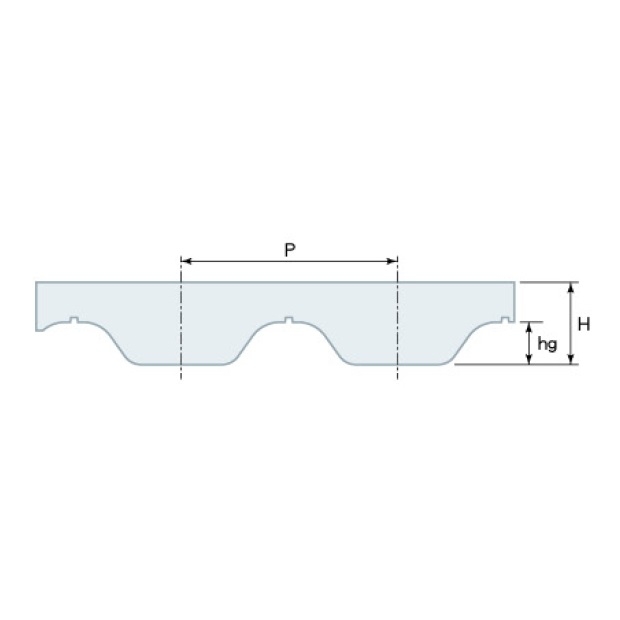

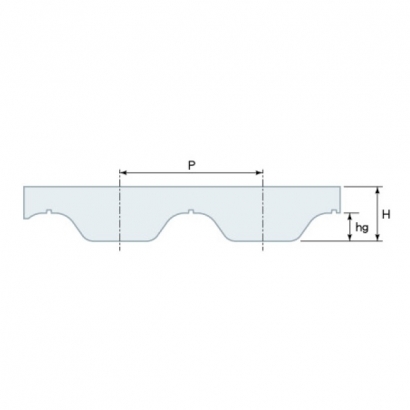

SPECIFICATION
型号
TYPE |
节距
P |
齿高
hg |
总厚
H |
| AT3 |
3 |
1.1 |
1.9 |
| AT5 |
5 |
1.2 |
2.7 |
| AT10 |
10 |
2.5 |
4.5 |
| AT15 |
15 |
3.7 |
6.5 |
| AT20 |
20 |
5.0 |
8.0 |

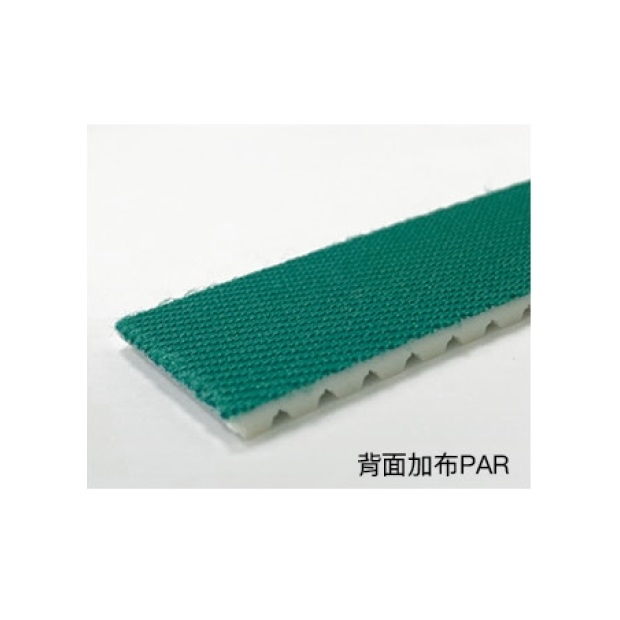

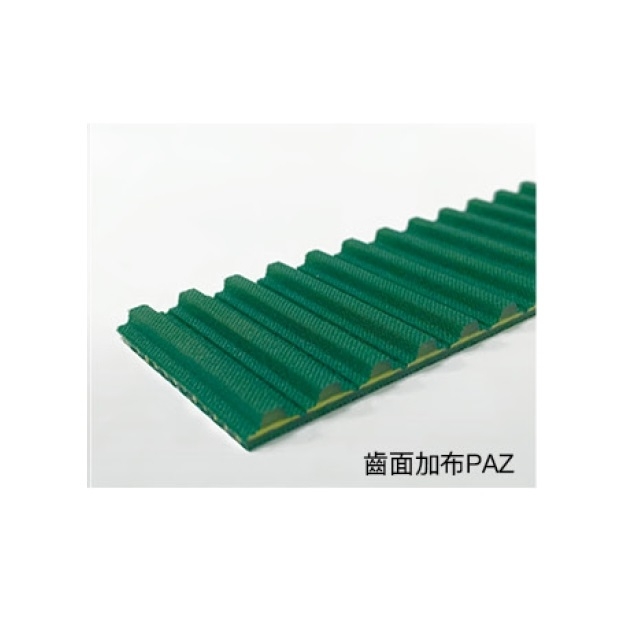

芯线：STEEL标准,高性能HP,高柔性HF（另可提供ARAMID芳纶芯,不锈钢芯来满足客户需求）＊视实际制造标准为主＊
