BELT CHARACTERISTICS
- Polyurethane timing belt with steel tension cords
- Tooth profile according to ISO 17396
- Tooth profile and dimension are optimised to guarantee uniform load distribution and minimum deformation under load
- High resistance and low stretch steel cords to guarantee high stability and low elongation
- Reduced polygonal effect with reduced drive vibration
- Particularly suitable for linear drives and light power transmission applications with high axial and angular positionin accuracy
- T5,T10,T20 profile double sided tooth construction available
- Negative length tolerance available on request
透过手机观看，请左右滑动观看

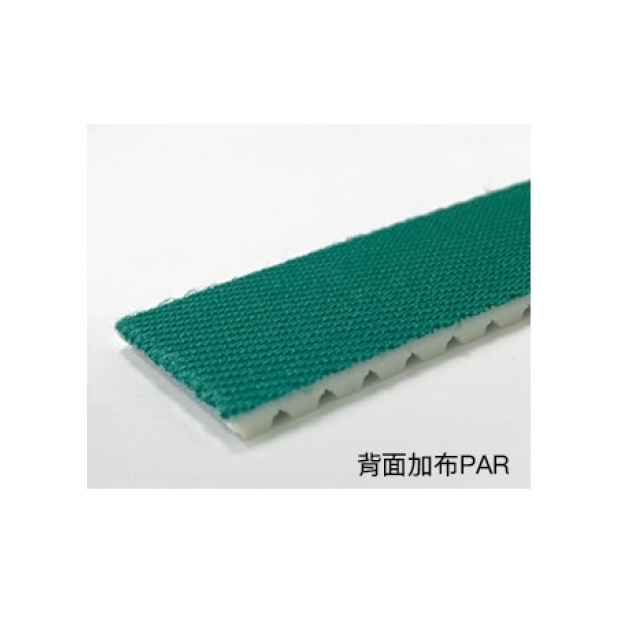

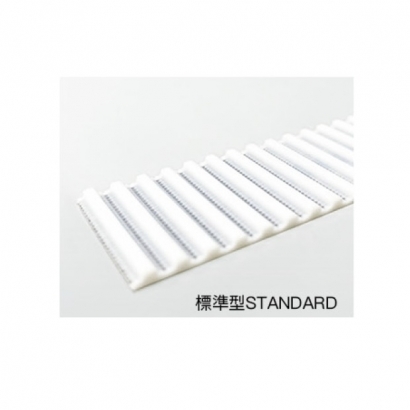

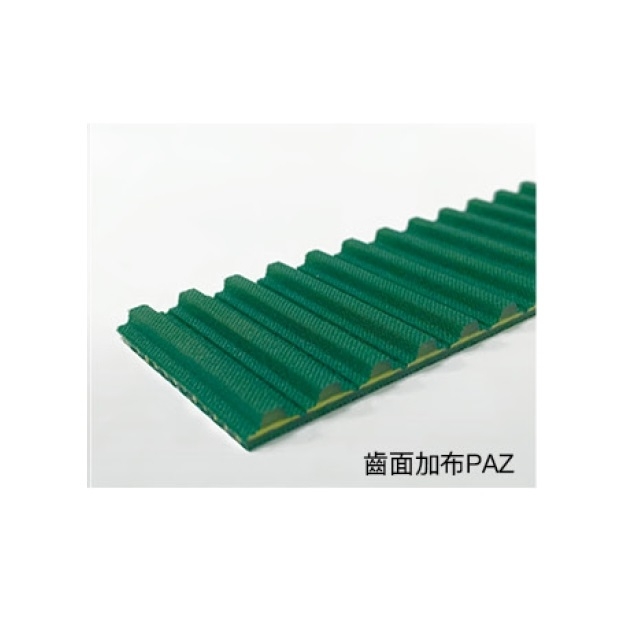

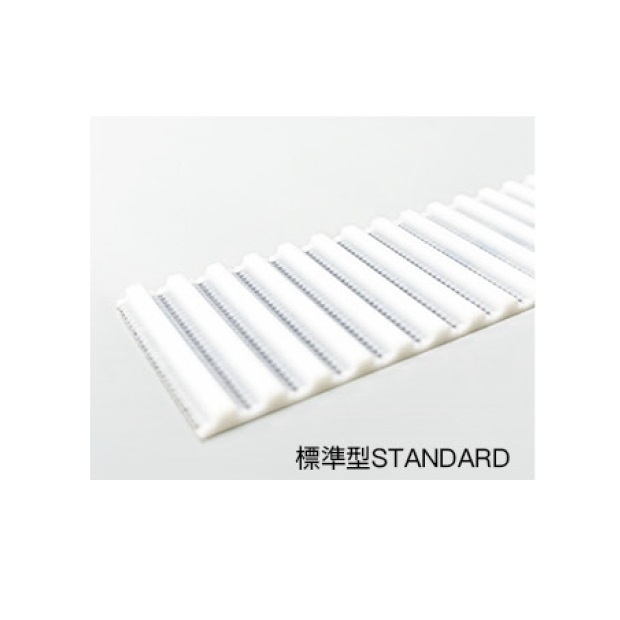

STANDARD
TOOTH
PROFILE |
TOOTH
ANGLE |
WIDTH
TOLERANCE
[mm] |
LENGTH
TOLERANCE
[mm/m] |
THICKNESS
TOLERANCE
[mm] |
| T2.5 |
40° |
±0.3 |
±0.5 |
±0.15 |
| T5 |
40° |
±0.5 |
±0.5 |
±0.15 |
| T10 |
40° |
±0.5 |
±0.5 |
±0.20 |
| T20 |
40° |
±0.1 |
±0.5 |
±0.40 |

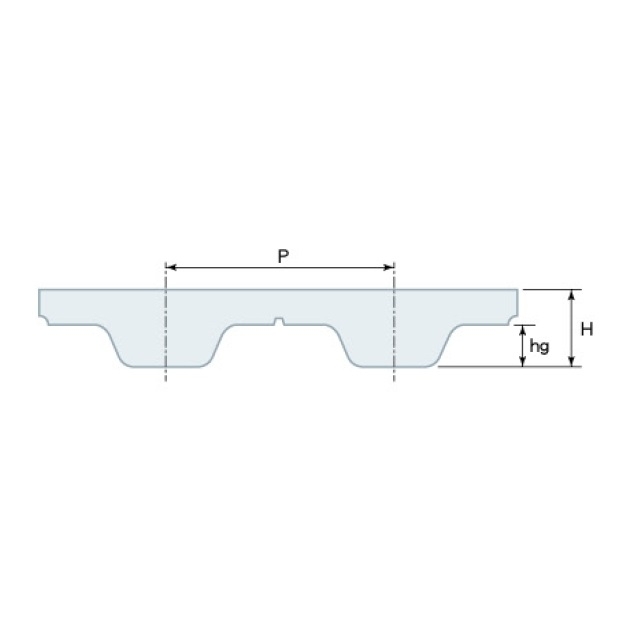

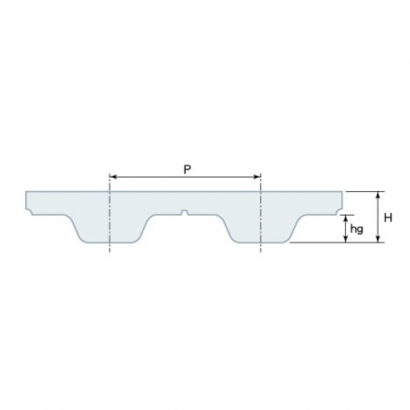

SPECIFICATION
型号
TYPE |
节距
P |
齿高
hg |
总厚
H |
| T2.5 |
2.5 |
0.7 |
1.6 |
| T5 |
5 |
1.2 |
2.2 |
| T10 |
10 |
2.5 |
6.8 |
| T20 |
20 |
5.0 |
8.0 |
芯线：STEEL标准,高性能HP,高柔性HF（另可提供ARAMID芳纶芯,不锈钢芯来满足客户需求）＊视实际制造标准为主＊
