齿形 PROFILE︱INCH type

齿形 PROFILE︱INCH type

MXL,XL,L,H,XH
INCH TYPE
/

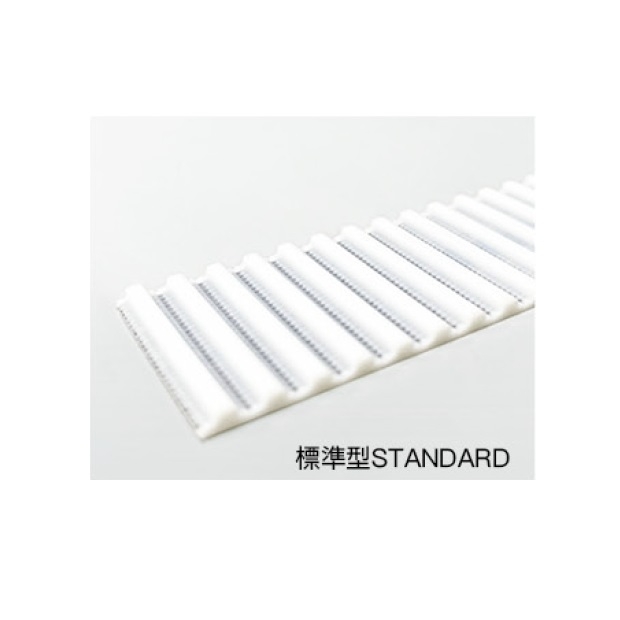

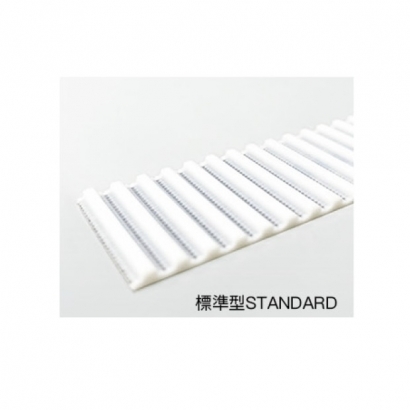

PU STANDARD
/

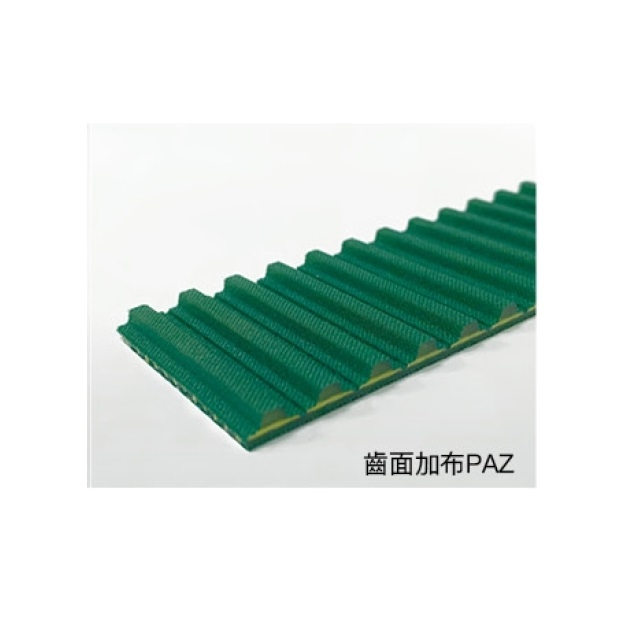

PU PAZ
/

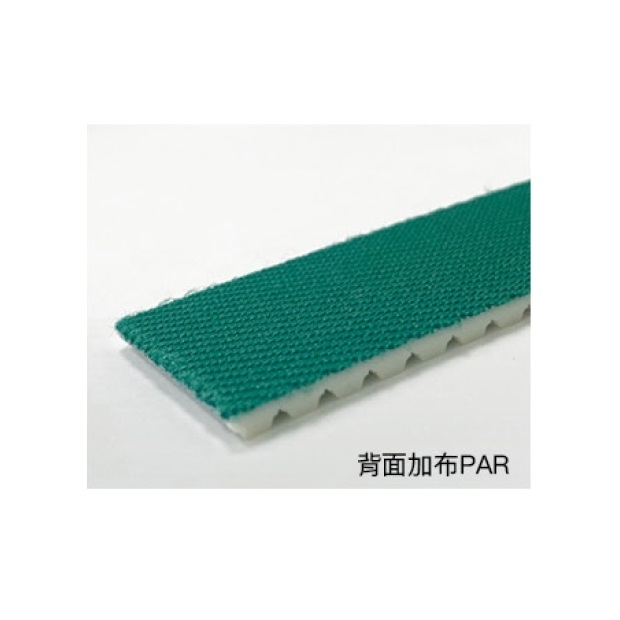

PU PAR
/
  • INCH TYPE
  • PU STANDARD
  • PU PAZ
  • PU PAR
详细介绍
BELT CHARACTERISTICS

- Polyurethane timing belt with tooth profile according to UNI/ISO 5296 with steel tension cords

- Allow to use small diameter pulley

- Mainly used in applications where inch pitch is an advantage (USA / UK)

- L & H profile double sided tooth construction available

- MXL is Trasparent (natural) PU colour

透过手机观看，请左右滑动观看
STANDARD

TOOTH
PROFILE		 TOOTH
ANGLE		 WIDTH
TOLERANCE
[mm]		 LENGTH
TOLERANCE
[mm/m]		 THICKNESS
TOLERANCE
[mm]
MXL 50° ±0.5 ±0.8 ±0.1
XL 50° ±0.5 ±0.5 ±0.2
L 40° ±0.5 ±0.5 ±0.2
H 40° ±0.5 ±0.5 ±0.2
XH 40° ±1.0 ±0.5 ±0.4

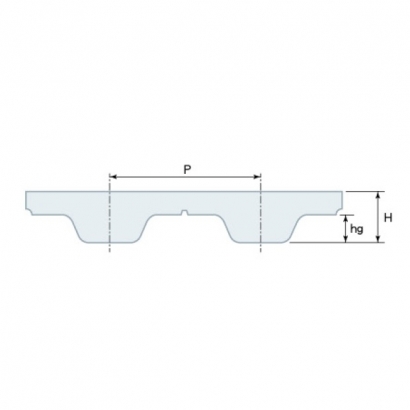

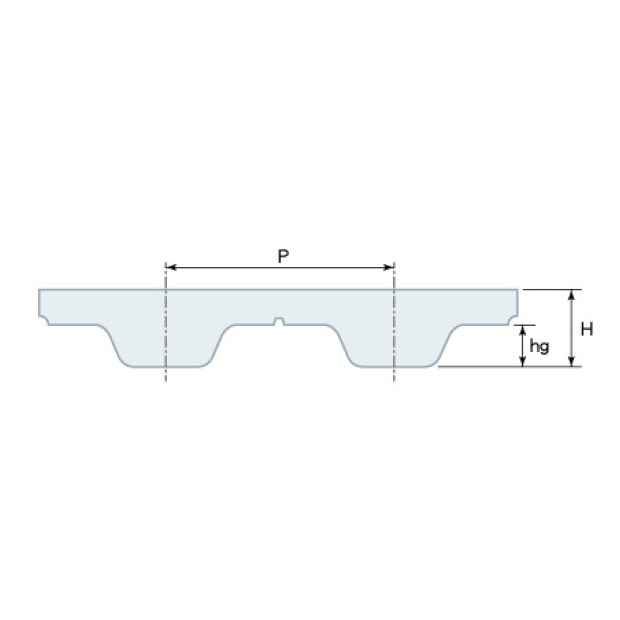

SPECIFICATION

型号
TYPE		 节距
P		 齿高
hg		 总厚
H
MXL 2.032
(2/25")		 0.50 1.6
XL 5.08
(1/5")		 1.27 2.3
L 9.525
(3/8")		 1.90 3.6
H 12.7
(1/2")		 2.30 4.3
XH 22.225
(7/8")		 6.35 11.2
芯线：STEEL标准,高性能HP,高柔性HF（另可提供ARAMID芳纶芯,不锈钢芯来满足客户需求）＊视实际制造标准为主＊
